Toggle Switch 12/24V – 20A – 16AWG Wires – Waterproof IP67

Marine Toggle Switch – 200mm Epoxy-Sealed Cables – IP67 Waterproof

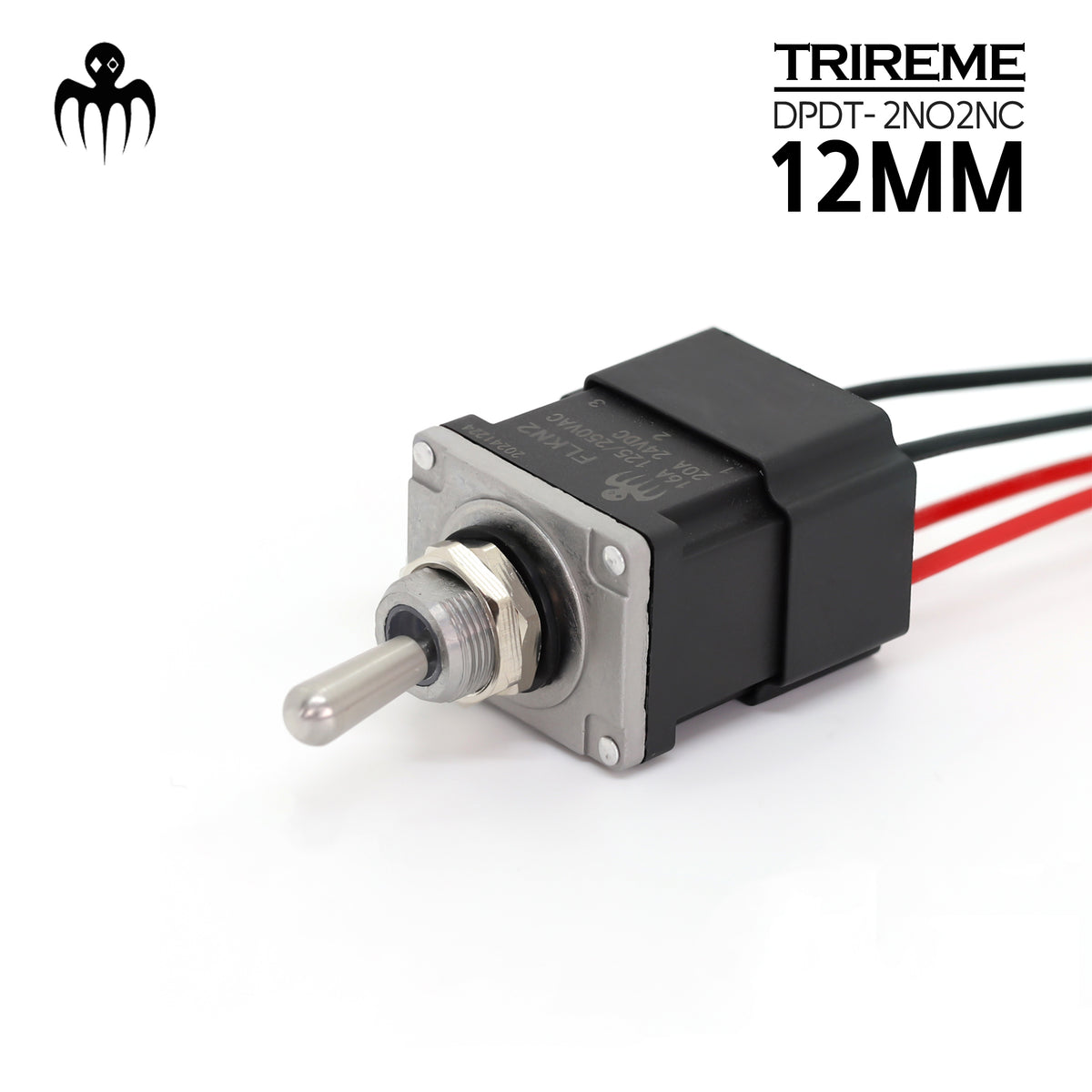

This toggle switch 12mm is equipped with 200mm cables for easy installation. The stainless steel (INOX316) toggle is designed for maximum corrosion resistance in marine and harsh environments, while the zinc alloy housing ensures mechanical durability. The cables are sealed with epoxy for enhanced protection against moisture and dust.

Contact Configuration – 2NO2NC

The 2NO2NC (2 Normally Open, 2 Normally Closed) configuration provides flexible and versatile control for various electrical systems. With its toggle ss316 long shaft, this switch offers immediate visual feedback, enabling instant decisions during maneuvers. Equipped with Quick-Flick technology and backlighting, it ensures ultra-precise switching, ideal for marine, automotive, and industrial applications.

Features:

✅ Rated for 12V DC, 20A – Ideal for marine and automotive use

✅ EPOXY-SEALED

✅ Designed for rough conditions – IP67 waterproof & corrosion-resistant

This  DPDT switch has four or six wires, arranged as follows:

• Terminal 2: Positive input (+12V)
• Terminal 5: Negative input (GND)
• Terminal 1 and 4: Output 1
• Terminal 3 and 6: Output 2

Depending on whether you are using a 4-wire or 6-wire configuration, the wiring method will slightly differ.

Switch Configurations: Multi-Position Options

Ref	Function	Drawing	Description	Applications	Examples in Boats
TSW1	On/Off		Basic single-position on/off functionality.	General-purpose switching.	Cockpit lights, auxiliary power.
TSW2	(On)/Off momentary		Momentary on position with auto-return to off.	Temporary activation.	Horns, starter switches.
TSW3	On/Off/On		Three-position switch with an off state in the middle.	Selective control between two modes or systems.	Running low or high-pressure water pumps.
TSW4	(On)/Off/(On) momentary		Momentary activation in two directions with auto-return to off.	Control systems requiring temporary adjustment.	Bow thrusters, trim tabs.
TSW5	On/(On)		Switch remains on but offers a momentary activation in one direction.	Applications needing a brief override of continuous function.	Bilge pumps, emergency overrides.

Latching vs. Momentary Behavior

• Latching (Maintained): The switch stays in its new position until it is manually toggled again. Once flipped, it holds the circuit open or closed.
• Momentary (Spring-Loaded): The switch only stays active while being held. Once released, it automatically returns to its original position (OFF or neutral).

Ref	Photo	Latching (Keeps Position) vs. Momentary (Hold to Keep On)

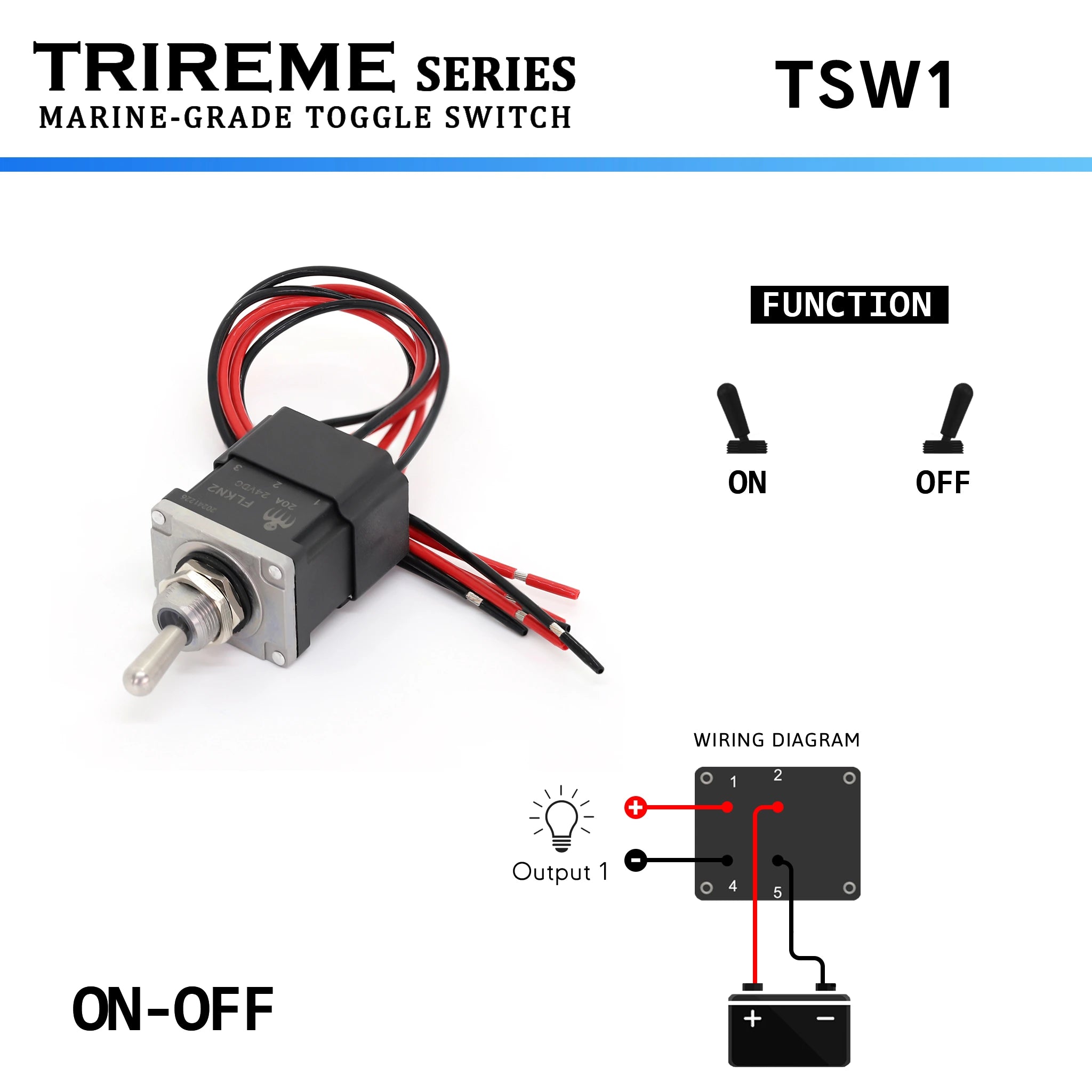

TSW1		On-Off (Latching): The switch stays ON or OFF until manually toggled.

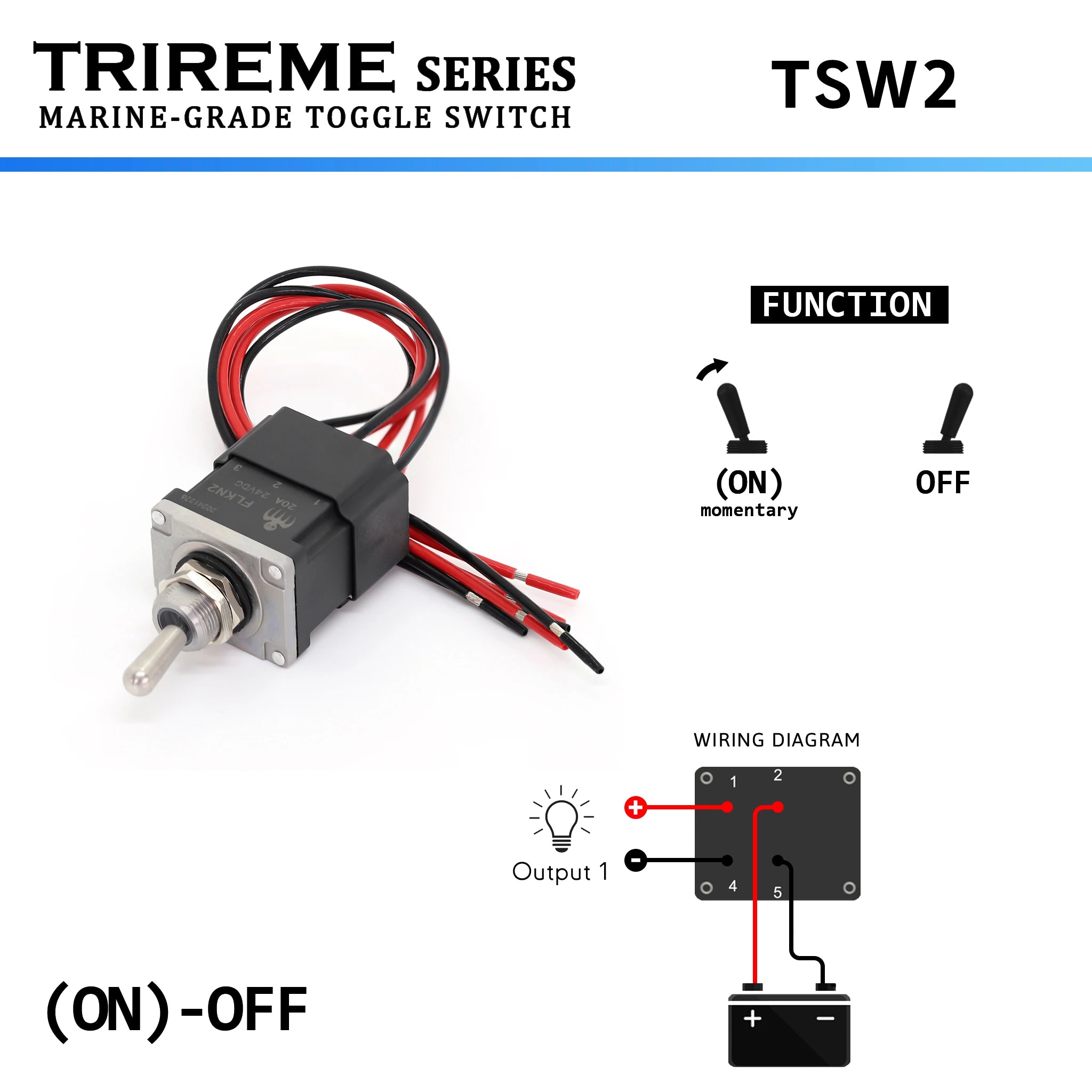

TSW2		(On)-Off (Momentary): The switch turns ON only while held; returns to OFF when released.
TSW3		On-Off-On (Latching): The switch stays in any of the three positions until manually moved.

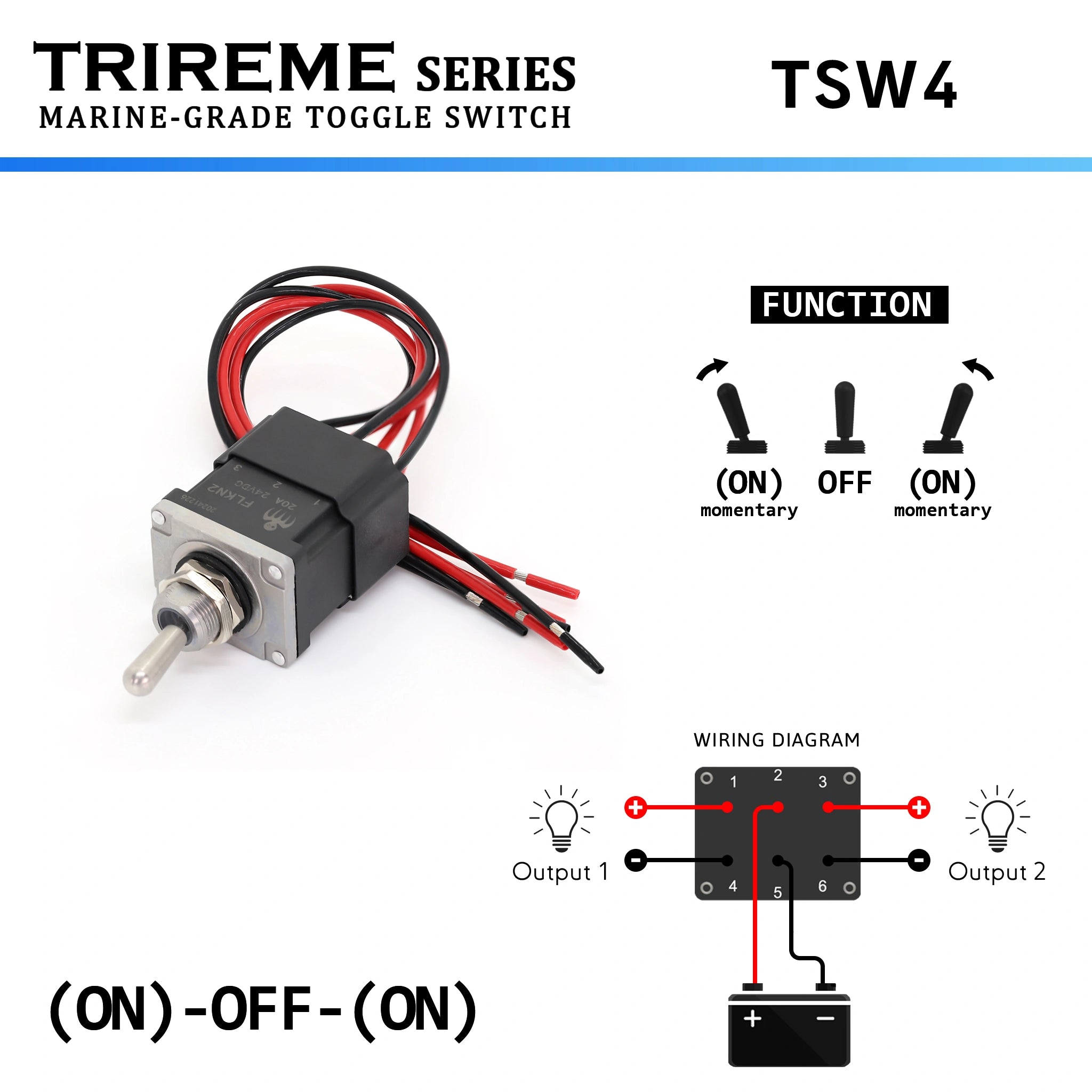

TSW4		(On)-Off-(On) (Momentary): Both ON positions are momentary; the switch returns to OFF when released.

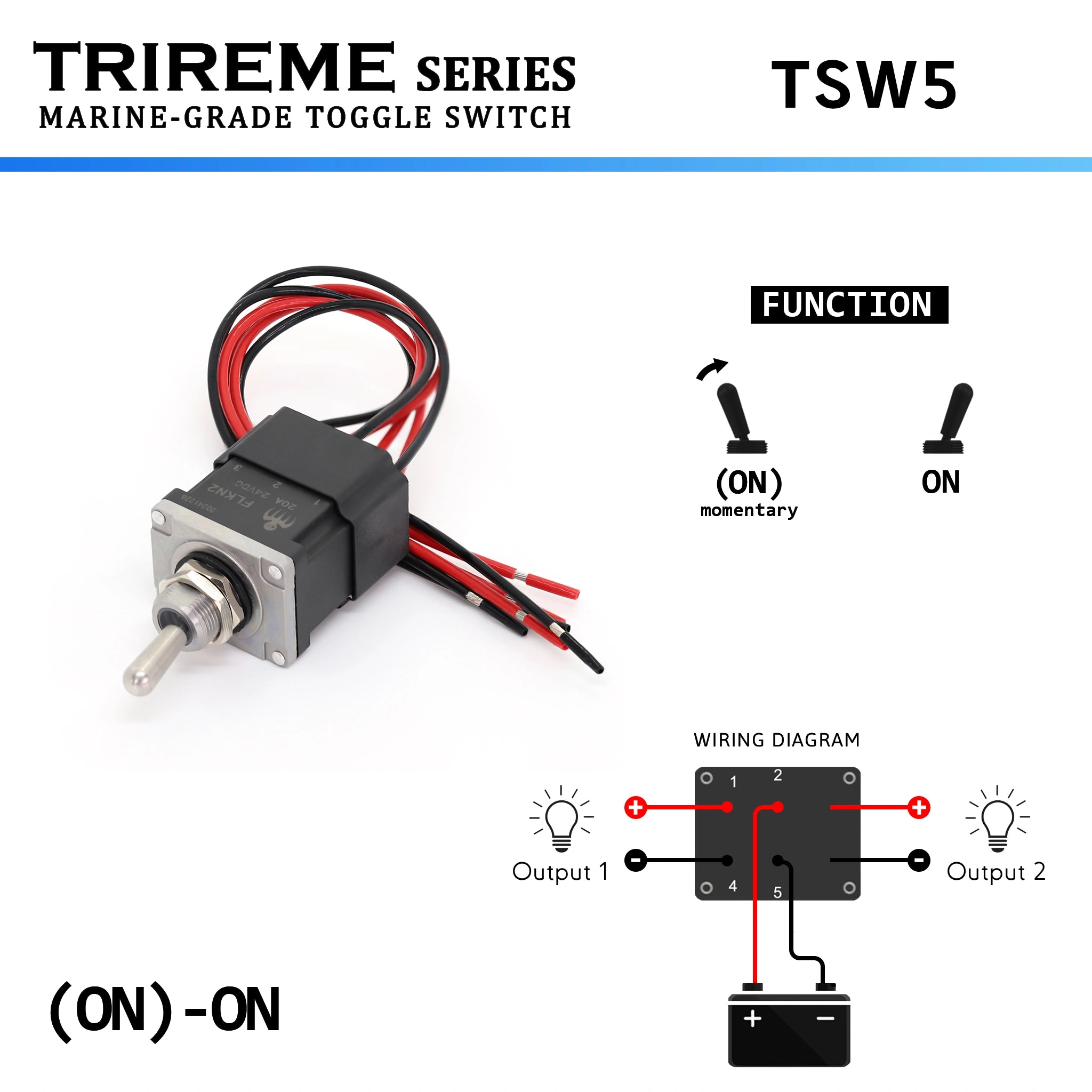

TSW5		(On)-On (Mixed): One position is latching (ON), while the other position is momentary.

Examples:

• Latching switches are used for functions that need to stay ON until turned OFF manually, such as navigation lights or bilge pumps.
• Momentary switches are used for temporary actions like sounding a horn or engaging trim tabs, where the function should stop when released.

Specifications:

• INOX316 Stainless Steel Toggle – Maximum corrosion resistance in marine environments.
• Zinc Alloy Core Housing – Ensures durability and mechanical stability.
• IP67 Waterproof on front – Fully sealed against water, dust, and harsh conditions.
• 12mm Mounting Diameter – Standard size for easy replacement.
• 200mm 16awg wires – Simple and secure installation.
• Multiple Switching Functions – Choose between maintained or momentary operation.
• Rated for 100,000+ cycles – Reliable long-term performance.

Applications:

• Marine electrical panels
• Automotive & off-road vehicles
• Industrial power systems
• Battery and lighting control

🔧 Need a wired version? Check out our pre-wired model.

For more information about switch behavior, style, and function, check our blog: How to choose the Best Marine Switch for your Boat.
