Push Button RGB - 22mm-12V 20A - Waterproof IP67 Customizable - 180 Symbols

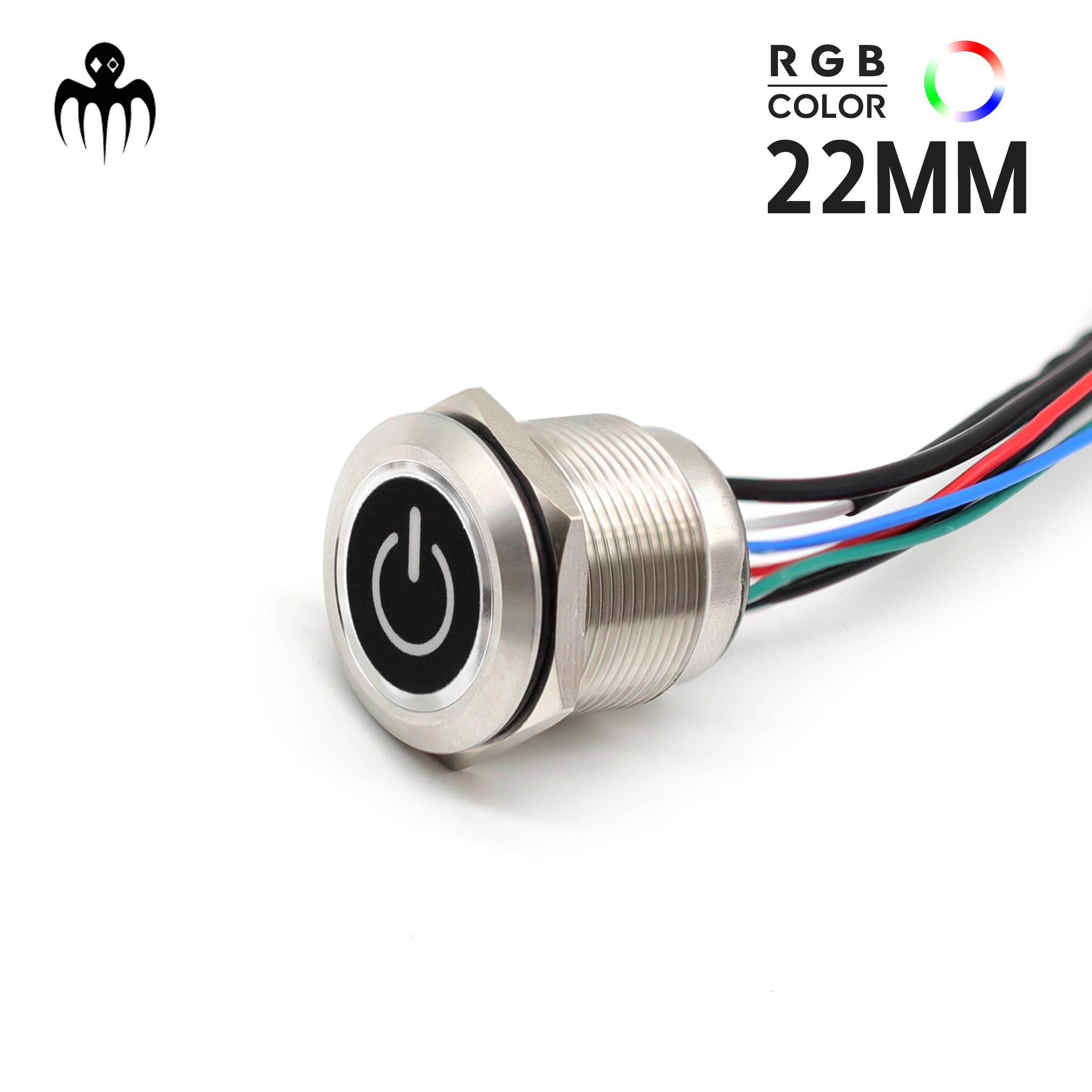

22mm RGB Push Button Switch – Sealed Cable

ON/OFF (Latching) - PB22W1L

(ON)/OFF (Momentary) - PB22W2L

The 22mm RGB Push Button Switch is a high-performance, IP67 waterproof switch, designed for marine, automotive, and industrial applications. With a sealed 200mm cable and common cathode wiring, it ensures durability, easy installation, and system compatibility with 12V and 24V circuits.

This switch is available in two configurations to match different application needs:

• ON/OFF (Latching): Press once to turn ON, press again to turn OFF.
• (ON)/OFF (Momentary): The switch stays ON only while pressed.

Additionally, the RGB LED indicator (Green, Red, and Blue) can be used as a status indicator, providing instant feedback when integrated into your system.

Key Features

✔ Available in ON/OFF or (ON)/OFF – Choose between latching and momentary operation.
✔ RGB LED (Green/Red/Blue) – Select a single color for clear status indication.
✔ Over 180 Symbols Available – Customize with interchangeable symbols for specific functions.
✔ Sealed 200mm Cable – Pre-wired for quick and secure installation.
✔ Common Cathode Wiring – Compatible with various power and signal circuits.
✔ 12V 20A Capacity – Supports high-current applications.
✔ IP67 Waterproof – Built for harsh environments, ideal for marine and outdoor use.
✔ Stainless Steel Housing – Corrosion-resistant, ensuring long-term durability.

🛠️ How to Use the 22mm RGB Push Button Switch

The 22mm RGB Push Button Switch is designed for intuitive operation and full customization. It features a press-to-activate mechanism and symbol customization, making it a versatile solution for various control systems.

🔹 Basic Operation

• ON/OFF (Latching) Version: Press once to turn ON, press again to turn OFF.
• (ON)/OFF (Momentary) Version: The switch remains ON only while being pressed.

🔹 LED Functionality

• Includes RGB LED indicators (Green, Red, and Blue).
• The LED can function as a status indicator when connected to a positive signal input.
• You can select one of the three available colors based on your wiring configuration.

🔹 Customizing the Symbol (Symbol Placement)

This switch comes with over 180 interchangeable symbols, allowing full customization based on your specific needs.

To change the symbol:
1️⃣ Choose a symbol from the provided set.
2️⃣ Remove the protective film from the symbol.
3️⃣ Insert the symbol into the transparent lens.
4️⃣ Press the lens onto the actuator until you hear a "click", securing it in place.

With its IP67 waterproof rating, sealed 200mm cable, and stainless steel housing, this push button switch is the perfect solution for boats, vehicles, industrial control panels, and custom dashboards.

⚡ Wiring Guide for the 22mm RGB Push Button Switch

This 22mm RGB push button switch features a common cathode wiring system, meaning all LED colors share a common ground connection (W - White). Depending on your installation needs, the switch can be wired in two different ways.

🔹 Wiring Overview

🔹 LED Connection Options

Option 1: LED Always ON

• The LED remains illuminated at all times, regardless of the switch position.
• Wiring: Connect the selected LED color (R, G, or B) to the positive terminal of the power source.

Option 2: LED ON when Device is ON

• The LED lights up only when the switch is activated.
• Wiring: Connect the selected LED color (R, G, or B) to the output circuit (BK). When the switch is pressed, power flows through the LED.

💡 Smart Design for any application.

✔ Flexible Configuration – Choose how and when the LED is illuminated.
✔ Common Cathode System – Simple and efficient wiring setup.
✔ Positive Signal Input – Allows LED usage as a status indicator.
✔ Pre-wired 200mm Sealed Cable – Ensures quick and secure installation.
✔ Works with 12V & 24V Systems – Suitable for marine, automotive, and industrial applications.

This switch is a rugged, reliable solution for boats, vehicles, industrial panels, and control systems, ensuring fast response and clear LED feedback.
